Specifications:

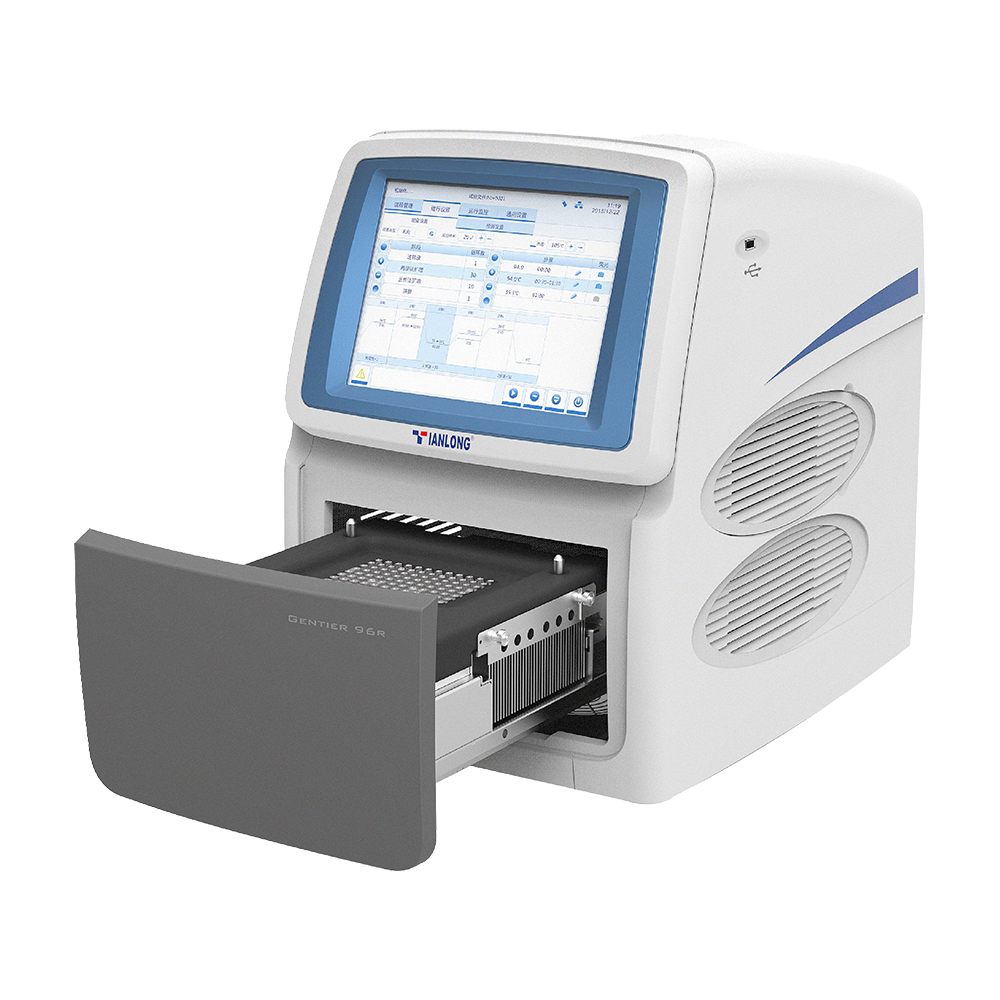

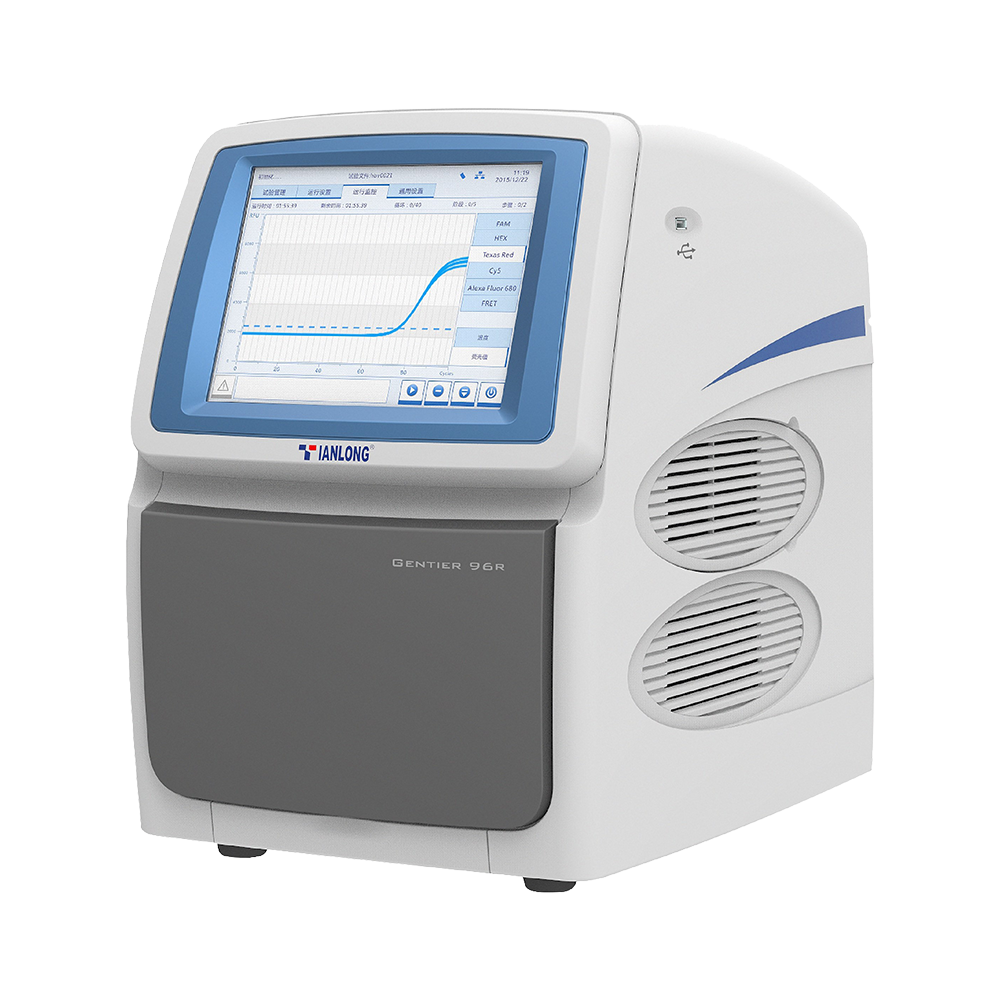

Model : Gentier 96R
Throughput : 1- 96
Fluorescence Channels : 4
Fluorescence Scanning Time: 7s
Dye Compatibility :
- Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green
- Channel 2: HEX, VIC, TET, JOE
- Channel 3: ROX, Texas Red
- Channel 4: Cy5
Light Source : High-brightness, long life and maintenance-free LED light source, excitation from the top
Detector: Photodiodes (PDs), top scanning
Excitation Range: CH1: 465nm CH2:527nm CH3:580nm CH4:632nm
Detection Range: CH1: 510nm CH2:563nm CH3:616nm CH4:664nm
Fluorescence Dynam ic Range: Adjustable
Sample Dynamic Range : From 101 to 1010copies
Heating Method: Peltier
Heating Rate : >6.1 ℃/s
Cooling Rate : >5.0 ℃/s
Temperature Uniformity : ±0.1 ℃
Temperature Accuracy : ≤0.1 ℃
Gradient Range: 1℃-40 ℃
Gradient Block : 12 row
Special Temperature Protocol : Thermal gradients PCR, long PCR, Touch Down PCR
Sample Testing Linearity and Repeatability : Linear correlation: /r/ ≥ 0.999 , Repeatability: cycle threshold (Ct) value CV≤0 0.5%
Control Modes:
- Model 1: 10.4 inch touch screen
- Mode 2: PC direct control
Power Failure Protection: Automatically start running experiments after power supply, no need to wait PC software
Data Storage and Transmission: Upload and download through USB disk. 1000 results can be stored in machine
Reporting Function: Templates reserved; customized experiment report
Key Applications : Relative quantification, absolute quantification, melting curve analysis, SNP analysis
Operating System for PC: Win7/Win10/Win11
Power Supply and Power Consumption: AC 100-240V,50-60HZ, 900VA
Weight: 30 Kg (net)
Instrument Dimension: 555*475*484mm (W*L*H)
Suitable Consumables : 0.2mL 96-well plates, 8-tube strips, single tubes (clear, frosted and white).
Certificate: IVDR CE
