Specifications:

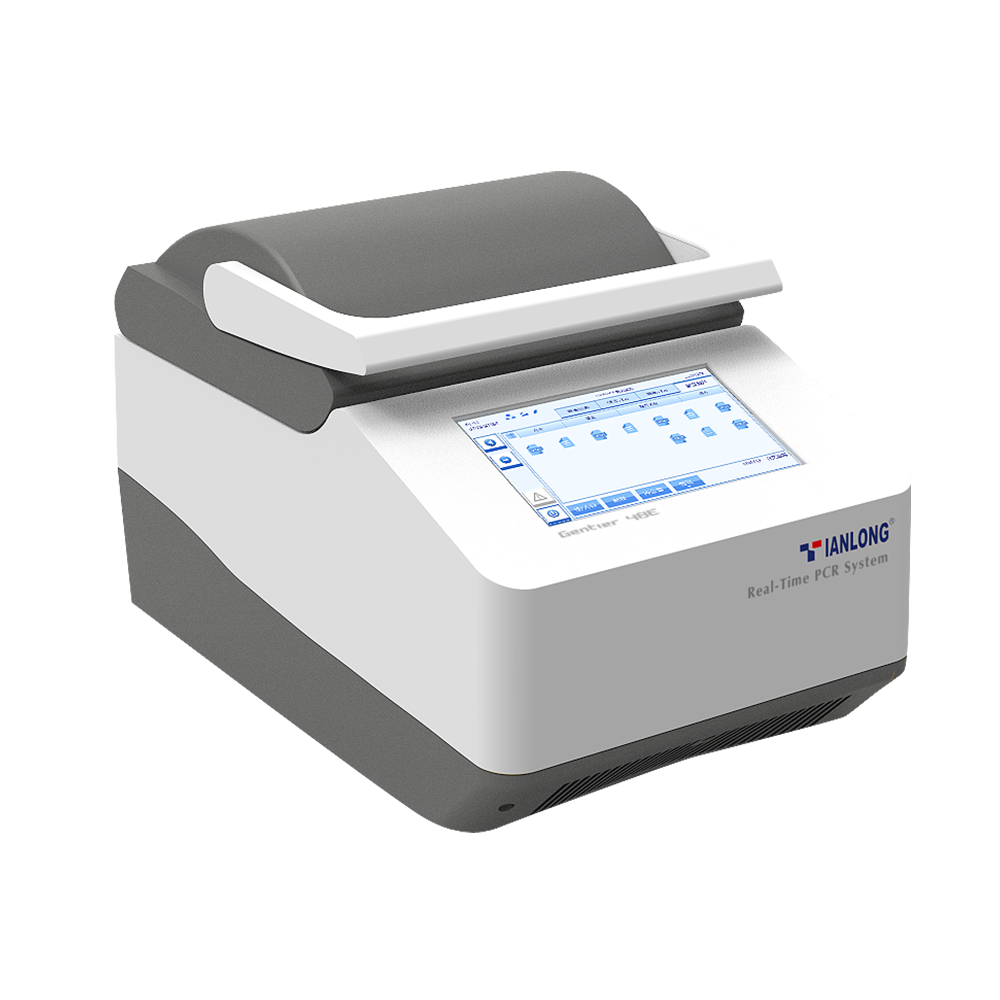

Model : Gentier 48E
Throughput : 1-48
Fluorescence Channels : 4
Fluorescence Scanning Time : 2s
Dye Compatibility :
- Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green
- Channel 2: HEX, VIC, TET, JOE
- Channel 3: ROX, Texas Red
- Channel 4: Cy5
Light Source : High-brightness, long life and maintenance-free LED light source
Detector: Photodiodes (PDs)
Excitation Range: CH1: 470nm CH2:523nm CH3:570nm CH4:638nm
Detection Range: CH1:525nm CH2:564nm CH3:610nm CH4:685nm
Fluorescence Dynamic Range: Adjustable
Sample Dynamic Range : From 101 to 1010copies
Thermal Black:
Heating Method: Peltier
Heating Rate : ≥8.0 ℃/s ℃
Cooling Rate : ≥6.2 ℃/s
Temperature Accuracy : ≤0.1 ℃
Gradient Block : 8 rows
Special Temperature Protocol : Thermal gradients PCR, long PCR, Touch Down PCR
Sample Testing Linearity and Repeatability : Linear correlation: /r/ ≥ 0.999 , Repeatability: cycle threshold (Ct) value CV≤0 0.5%
Control Modes :
- Model1: 7 inch touch screen
- Mode 2: PC direct control
Power Failure Protection: Automatically start running experiments after power supply, no need to wait PC software
Data Storage and Transmission: Upload and download through USB disk. 1000 results can be stored in machine
Reporting Function: Templates reserved; customized experiment report
Key Applications : Relative quantification, absolute quantification, melting curve analysis, SNP analysis
Operating System for PC: Win7/Win10/Win11
Power Supply and Power Consumption: AC 100-240V,S0-60HZ; 600VA
Weight: 11 Kg (net)
Instrument Dimension: 260*400*260mm (W*L*H)
Suitable Consumables : 0.2mL clear non-skirt 48-WELL plates, 8>tube strips, single tubes, etc.
Certificate: IVDR CE
